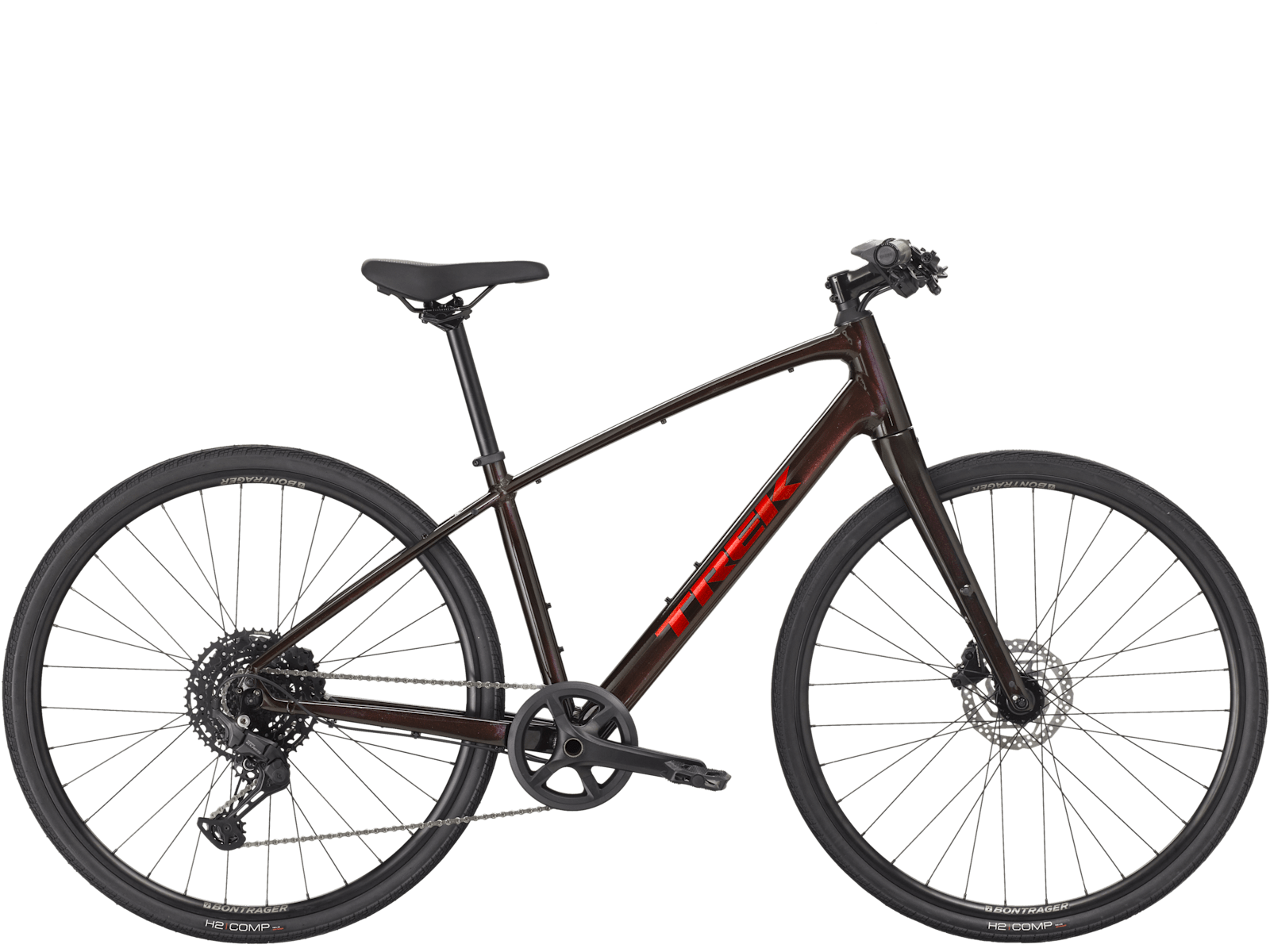

Trek FX 3 (2027)

$1,199.99

The FX 3 is the quick one in the FX range. Aluminium frame with a carbon fork, which takes a surprising amount of buzz out of rough bitumen, and a 10-speed Shimano CUES drivetrain with hydraulic disc brakes.

It is flat bar, so you sit up and can see what is going on around you, but the geometry is closer to a road bike than a cruiser. That is what makes it feel fast.

Who it suits: commuters who want to get there quickly, riders coming back to cycling who do not want drop bars, and anyone riding rail trails.

Frameset

Frame: Alpha Gold Aluminium, internal cable routing, rack and mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR
Fork: FX carbon, flat-mount disc, rack mounts, 410 mm axle-to-crown, ThruSkew 5 mm QR

Wheels

Hub front: Formula DC-20, alloy, 6-bolt, 100x5 mm
Skewer front: 139x5 mm bolt-on
Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm
Skewer rear: 152x5 mm QR
Rim: Bontrager Tubeless Ready Disc, 32-hole, Presta valve
Tyre: Bontrager H2 Comp, wire bead, 30 tpi, 700x35 mm
Max tyre size: 700x40 mm

Drivetrain

Shifter: Shimano CUES U6000 with optical gear display, 10-speed
Rear derailleur: Shimano CUES U6000 GS
Crank (XS, S, M): Prowheel alloy, 40T narrow-wide ring, 170 mm length
Crank (L, XL): Prowheel alloy, 40T narrow-wide ring, 175 mm length
Cassette: Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
Chain: Shimano LG500
Pedal: Bontrager City pedals
Max chainring size: 1x: 44T, 2x: 46/32

Components

Saddle: Bontrager H1
Seatpost (XS, S, M): Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Seatpost (L, XL): Bontrager alloy, 27.2 mm, 12 mm offset, 400 mm length
Handlebar (XS, S, M): Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 600 mm width
Handlebar (L, XL): Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 660 mm width
Grips: Trek ergonomic PRO, lock-on
Stem (XS, S): Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length
Stem (M, L, XL): Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length
Brake: Shimano hydraulic disc, MT201 lever, UR300 calliper
Brake rotor: Shimano RT26, 6-bolt, 160 mm
Max brake rotor size: 160 mm front and rear

Weight

Weight: M - 11.65 kg / 25.69 lb
Weight limit: Maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb)

Spec applies to all sizes unless listed separately.

Buying it from Leading Edge Cycles

Built and safety checked by our mechanics before you collect it
Sized to the rider in store, first service free
Free delivery in Shepparton. We also deliver to Benalla, Wangaratta, Echuca, Seymour, Yarrawonga, Nagambie and Euroa
17 Edward St, Shepparton. Mon to Fri 9am to 5pm, Sat 10am to 2pm. (03) 5831 2968
