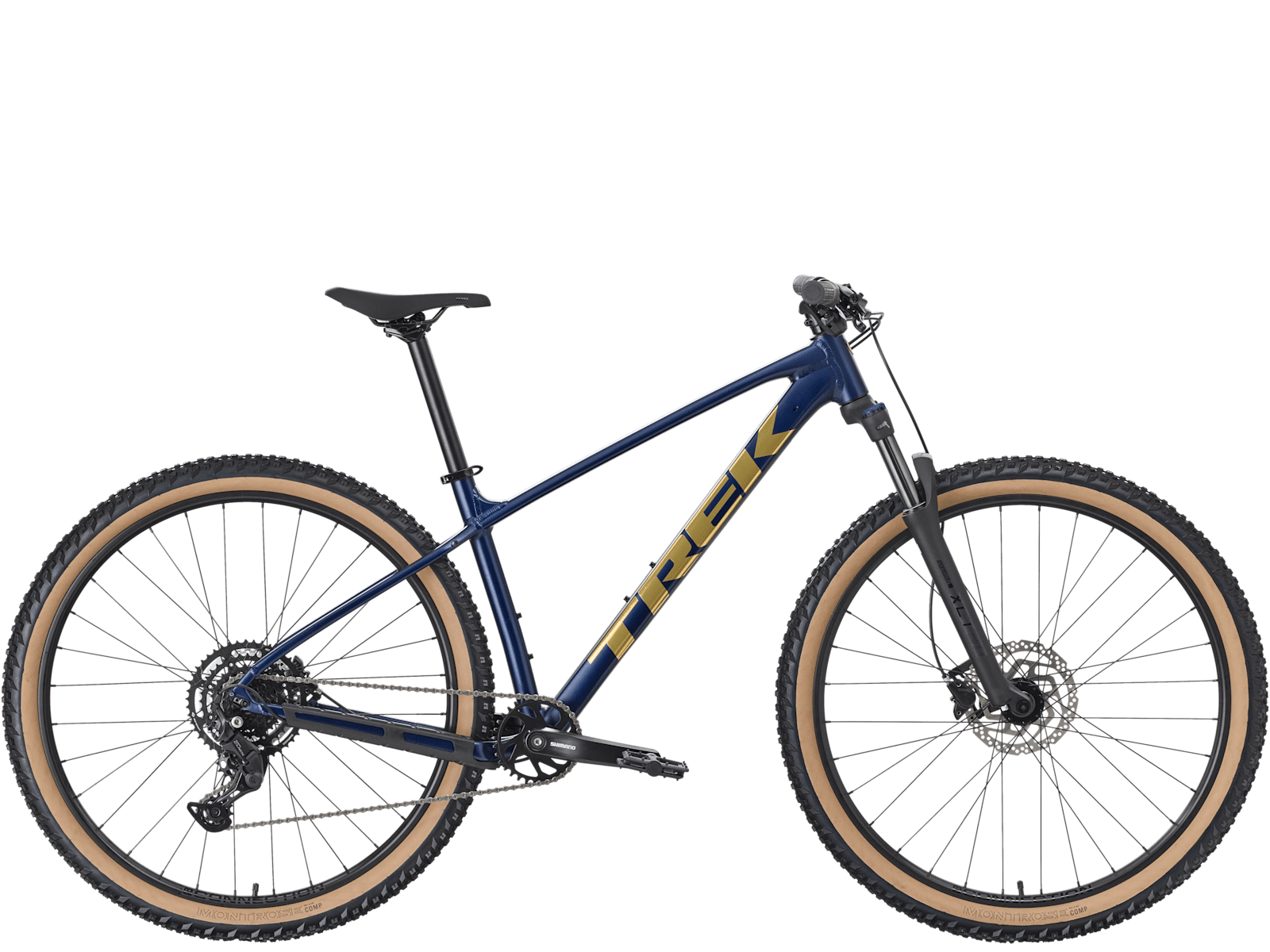

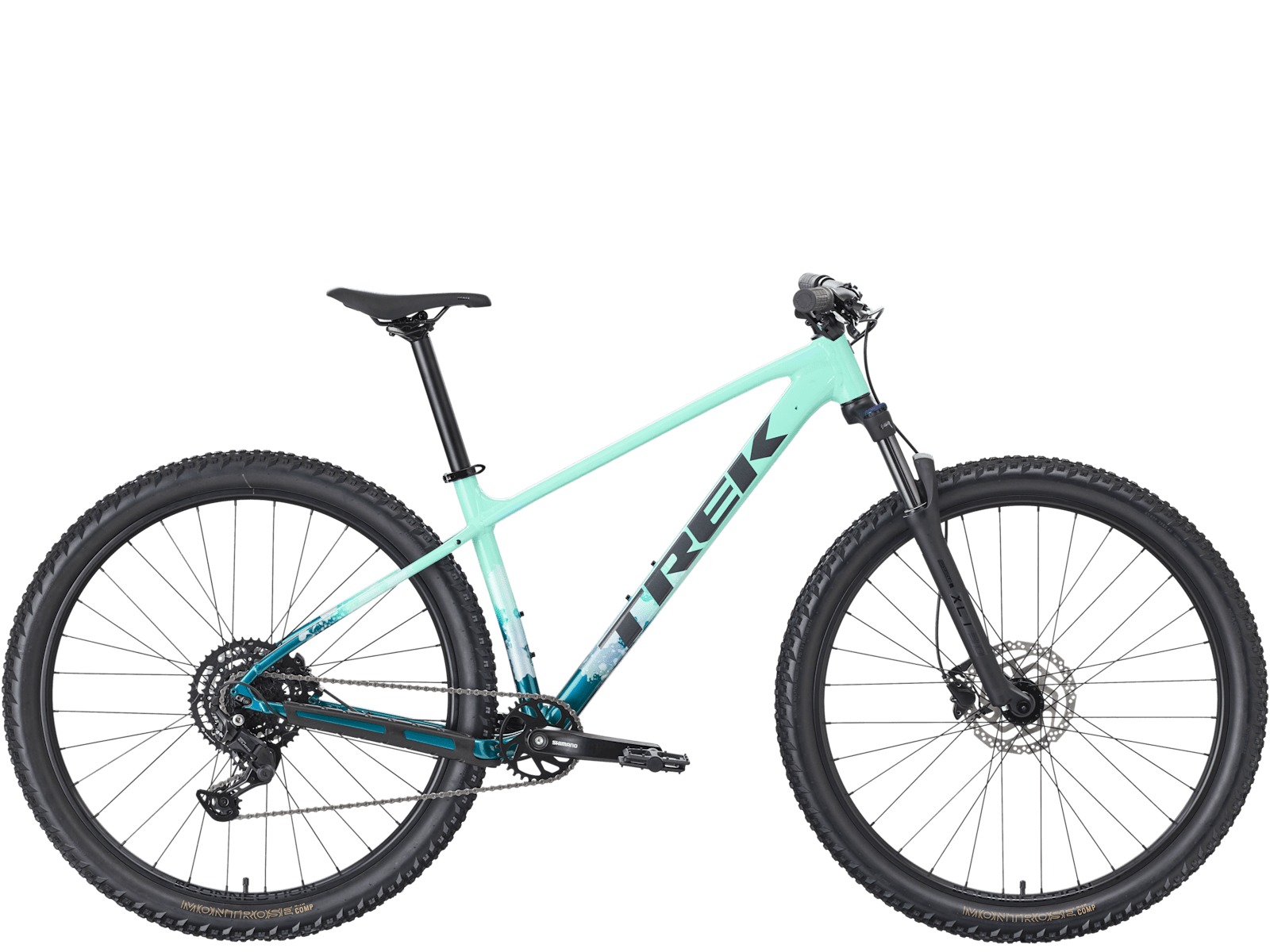

Trek Marlin 5 Gen 3 (2027)

$999.99

The Marlin 5 is where the Marlin range starts to feel like a proper mountain bike rather than a bike that can handle a trail. You get a 100mm suspension fork, hydraulic disc brakes, and Shimano's 9-speed CUES drivetrain with an 11-46 cassette, which is a wide enough range for anything in the Goulburn Valley.

It keeps the things that make a Marlin useful for real life: rack and kickstand mounts, internal routing for a dropper post if you upgrade later, and tyres at 2.4 inches that are happy on dirt and not punishing on the road.

Who it suits: a first serious mountain bike, or a rider who commutes during the week and rides trails on the weekend and wants one bike for both.

Frameset

Frame (XS): Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Frame (S to XXL): Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Fork (XS): SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
Fork (S): SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
Fork (M to XXL): SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 29" wheel, 100 mm QR, 100 mm travel

Wheels

Hub front: Formula DC-20, alloy, 6-bolt, 100x5 mm
Skewer front: Trek Thru-Skew
Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm
Skewer rear: 173x5 mm QR
Rim: Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Spokes: 14 g stainless steel, black
Tyre (XS, S): Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.40"
Tyre (M to XXL): Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.40"
Max tyre size: Frame: 29x2.40" (XS and S: 27.5x2.40"), Fork: see manufacturer

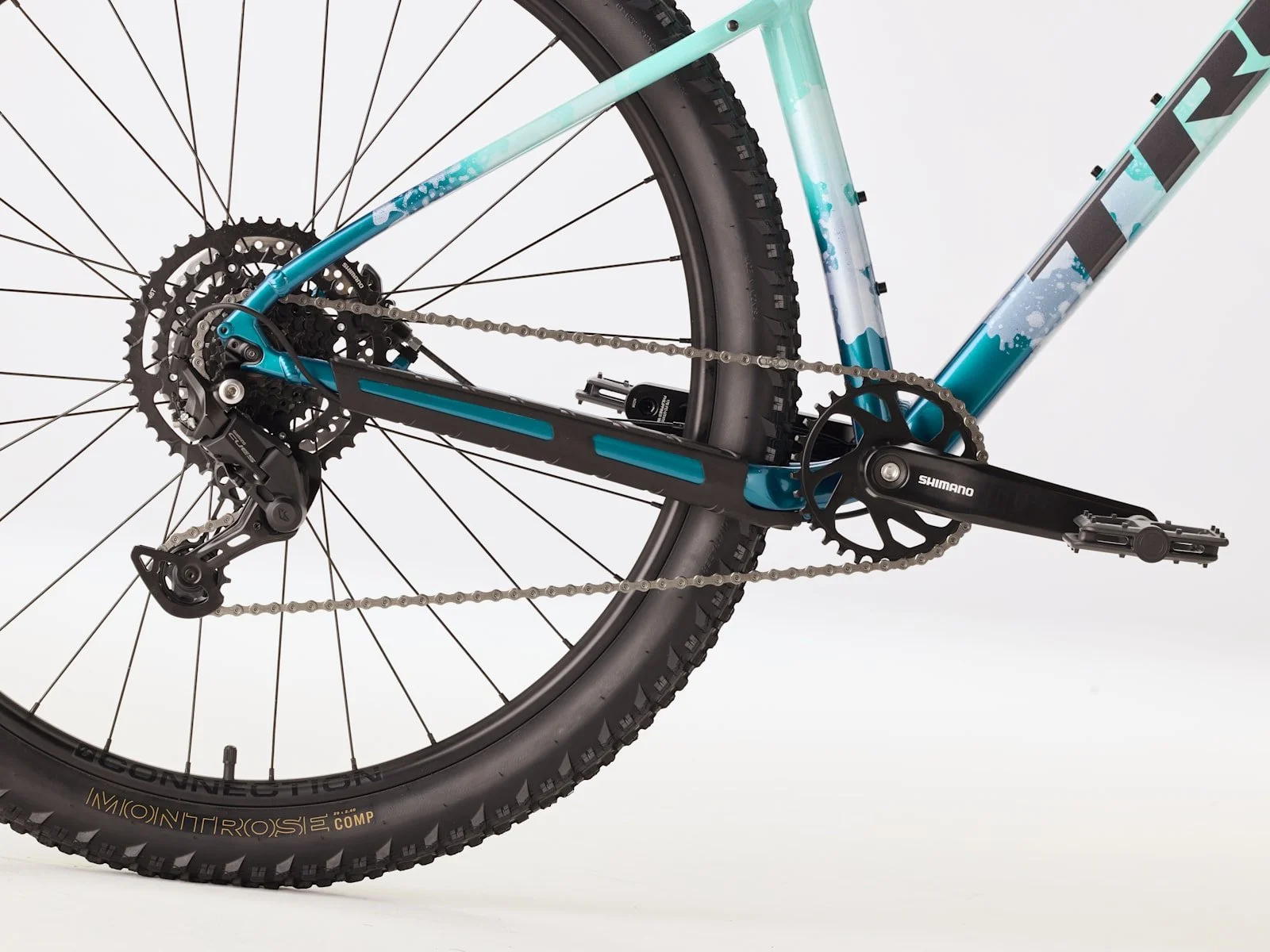

Drivetrain

Shifter: Shimano U4000, 9-speed
Rear derailleur: Shimano CUES U4000
Crank (XS, S, M, ML): Shimano CUES U4001, 32T, 52 mm chainline, 170 mm length
Crank (L, XL, XXL): Shimano CUES U4001, 32T, 52 mm chainline, 175 mm length
Bottom bracket: Shimano, 73 mm, threaded cartridge, 122.5 mm spindle
Cassette: Shimano LINKGLIDE LG300, 11-46, 9-speed
Chain: Shimano LG500
Pedal: VP-536 nylon platform
Max chainring size: 1x: see FAQ, 2x: 36T, 3x: 42T

Components

Saddle: Bontrager Verse Short, stainless steel rails
Seatpost (XS, S, M): Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Seatpost (ML to XXL): Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
Handlebar (XS): Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
Handlebar (S): Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Handlebar (M to XXL): Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips: Trek Line Comp, nylon lock-on
Stem (XS, S): Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
Stem (M, ML, L): Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Stem (XL): Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
Stem (XXL): Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Headset: Semi-integrated, 1-1/8"
Brake rotor: Shimano RT26, 6-bolt, 160 mm (M to XXL also 180 mm)
Brake set: Shimano MT200 hydraulic disc
Max brake rotor size: Frame: 180 mm, Fork: see fork manufacturer

Weight

Weight: M - 15.10 kg / 33.29 lb
Weight limit: Maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb)

Spec applies to all sizes unless listed separately.
