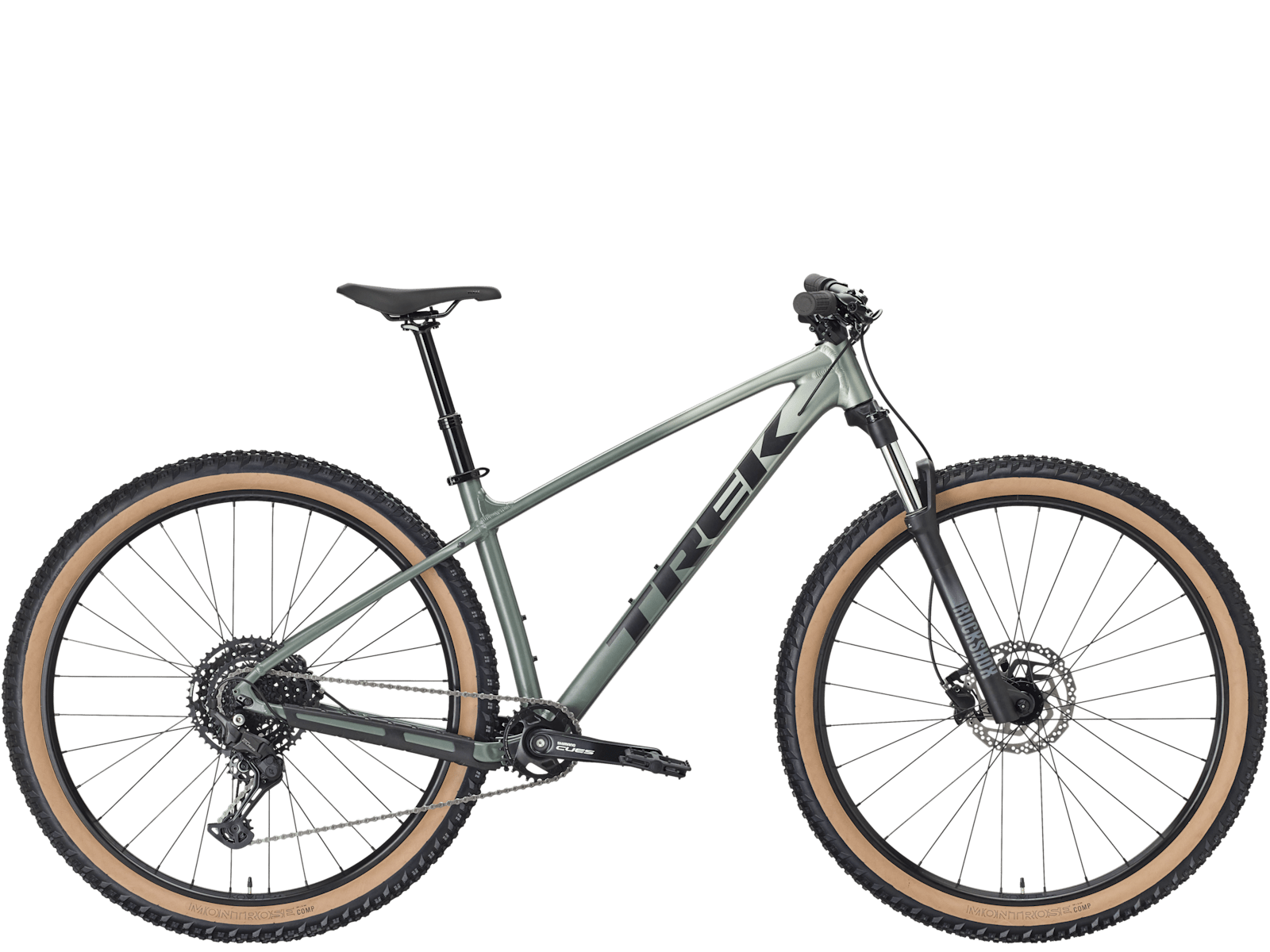

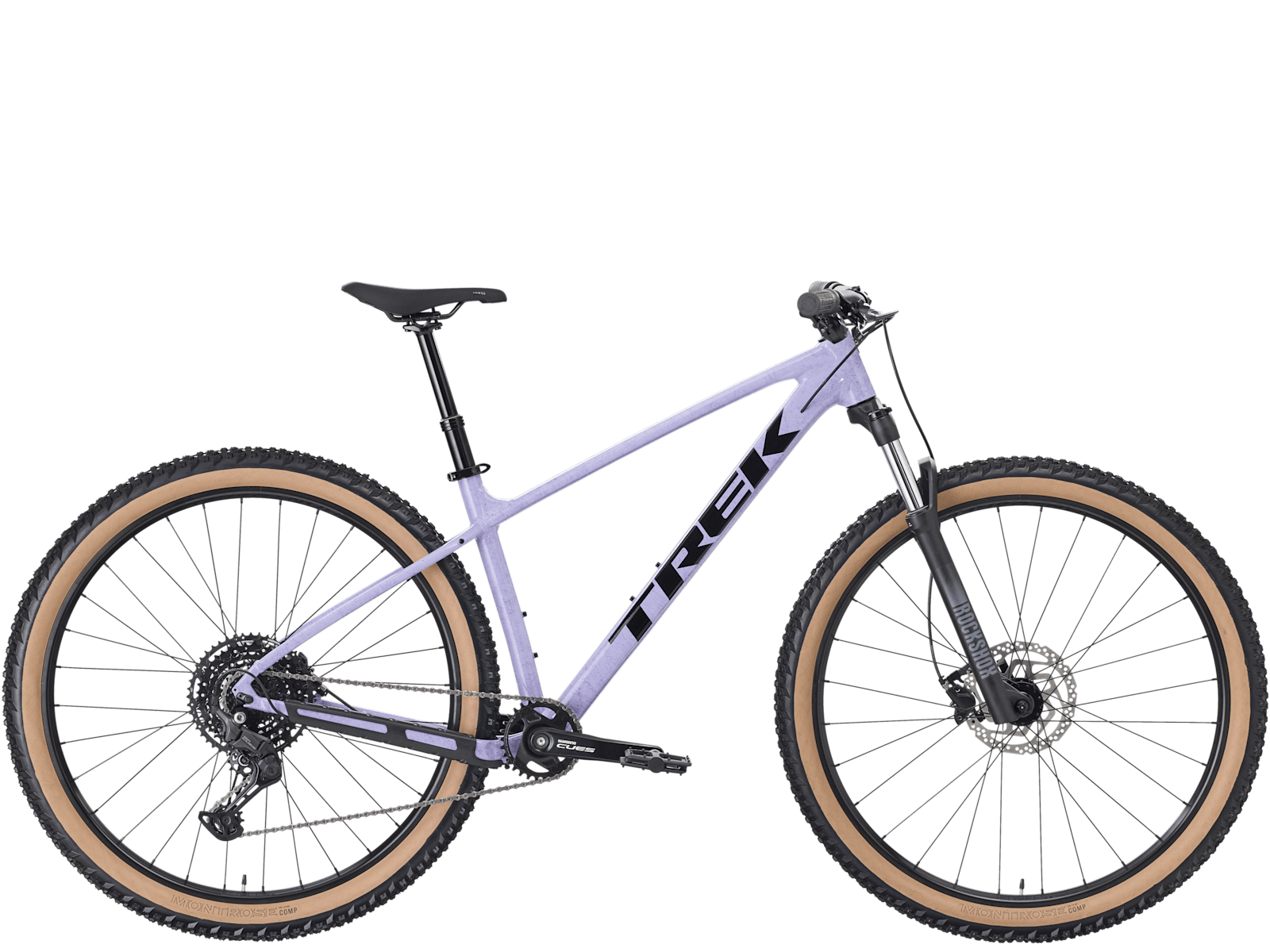

Trek Marlin 6 Gen 3 (2027)

The Marlin 6 is the one we point people at when they have ridden a bit and know they will keep going. The frame geometry is slacker than the cheaper Marlins, which sounds like jargon and means the bike is calmer and easier to control when the trail points down.

Same useful everyday details as the rest of the range, rack and kickstand mounts and dropper routing, but with a better fork and a wider gear range than the 5.

Who it suits: riders stepping up from an entry level hardtail, or someone buying their first mountain bike who already knows they are going to ride it properly.

Frameset

• Frame (XS): Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
• Frame (S, M, ML, L, XL): Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
• Fork (XS, S): RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
• Fork (M, ML, L, XL): RockShox Judy, coil spring, preload, TurnKey lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel

Wheels

• Hub front: Formula DC-20, alloy, 6-bolt, 100 mm
• Skewer front: 116x5 mm QR
• Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm
• Skewer rear: 173x5 mm QR
• Rim (XS, S): Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve
• Rim (M, ML, L, XL): Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve
• Tyre (XS, S): Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.40"
• Tyre (M, ML, L, XL): Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.40"
• Rim strip: Bontrager TLR
• Max tyre size: Frame: 29x2.40" (XS and S: 27.5x2.40"), Fork: see manufacturer

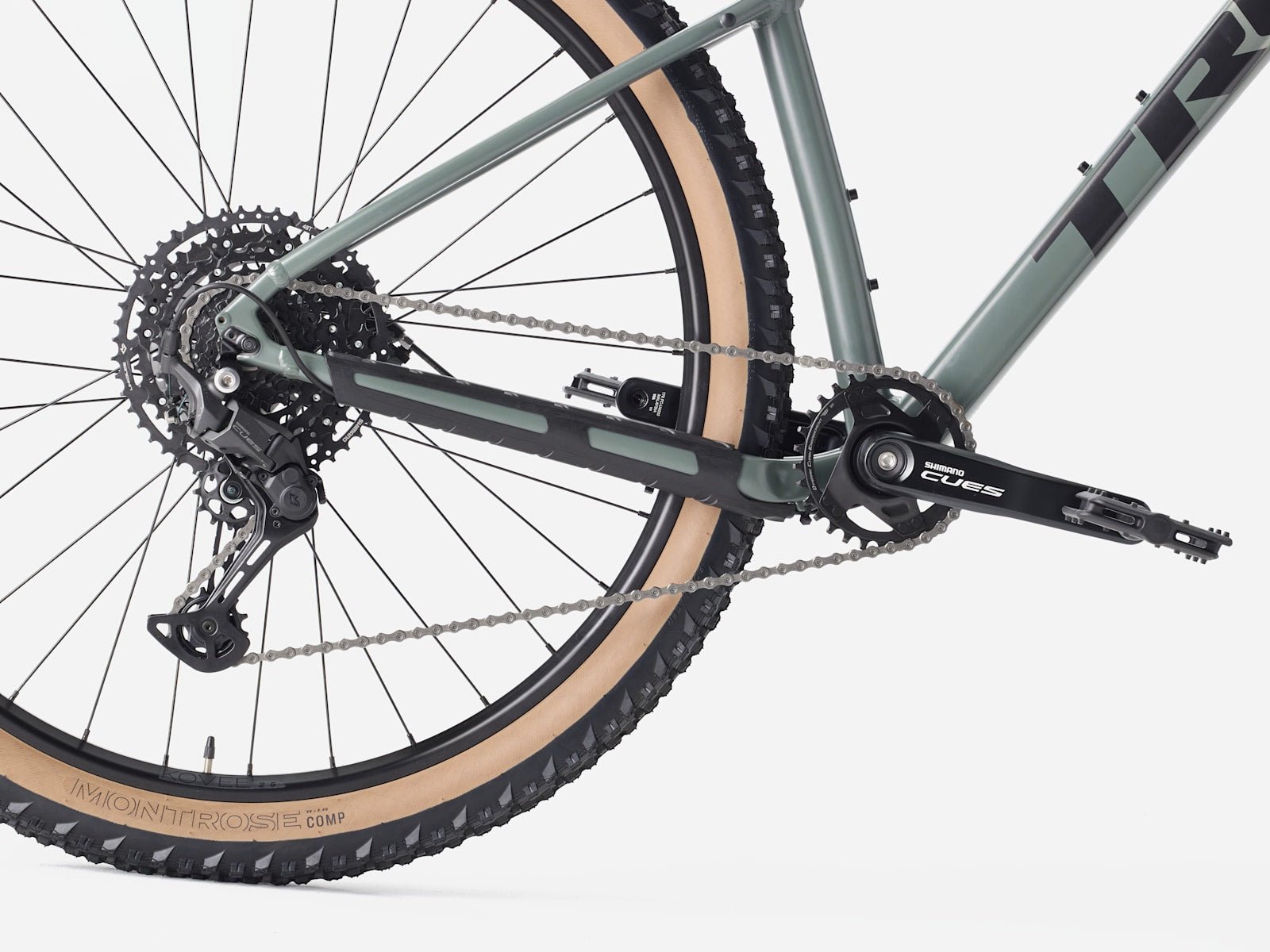

Drivetrain

• Shifter: Shimano U6000, 10-speed
• Rear derailleur: Shimano CUES U6000 GS
• Crank (XS, S, M, ML): Shimano U4000, 30T chainring, 170 mm length
• Crank (L, XL): Shimano U4000, 30T chainring, 175 mm length
• Bottom bracket: Shimano, 73 mm, threaded cartridge, 122.5 mm spindle
• Cassette: Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
• Chain: Shimano LG500
• Pedal: VP-536 nylon platform
• Max chainring size: 1x: see FAQ, 2x: 36T, 3x: 42T

Components

• Saddle: Bontrager Verse Short, stainless steel rails
• Seatpost (XS, S): TranzX JD-YSI34 dropper, 100 mm travel, internal routing, 31.6 mm, 350 mm length
• Seatpost (M): TranzX JD-YSI34 dropper, 125 mm travel, internal routing, 31.6 mm, 405 mm length
• Seatpost (ML, L, XL): TranzX JD-YSI34 dropper, 150 mm travel, internal routing, 31.6 mm, 456 mm length
• Handlebar (XS): Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
• Handlebar (S): Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
• Handlebar (M, ML, L, XL): Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
• Grips: Trek Line Comp, nylon lock-on
• Stem (XS, S): Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
• Stem (M, ML, L): Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
• Stem (XL): Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
• Headset: Semi-integrated, 1-1/8"
• Brake rotor: Shimano RT26, 6-bolt, 160 mm (M, ML, L, XL also 180 mm)
• Brake set: Shimano MT200 hydraulic disc
• Max brake rotor size: Frame: 180 mm, Fork: see fork manufacturer

Weight

• Weight: M - 15.00 kg / 33.07 lb
• Weight limit: Maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb)

Spec applies to all sizes unless listed separately.
