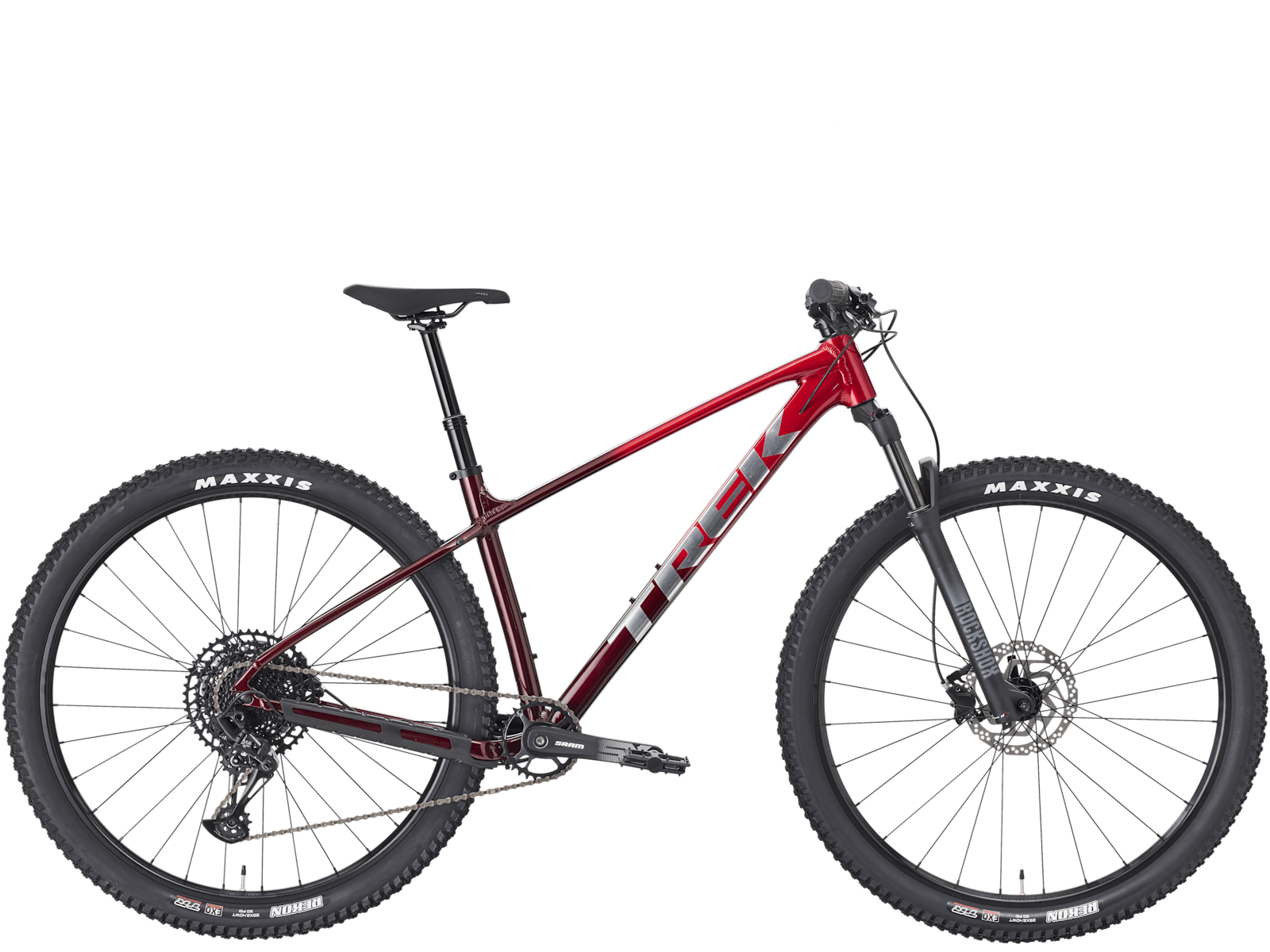

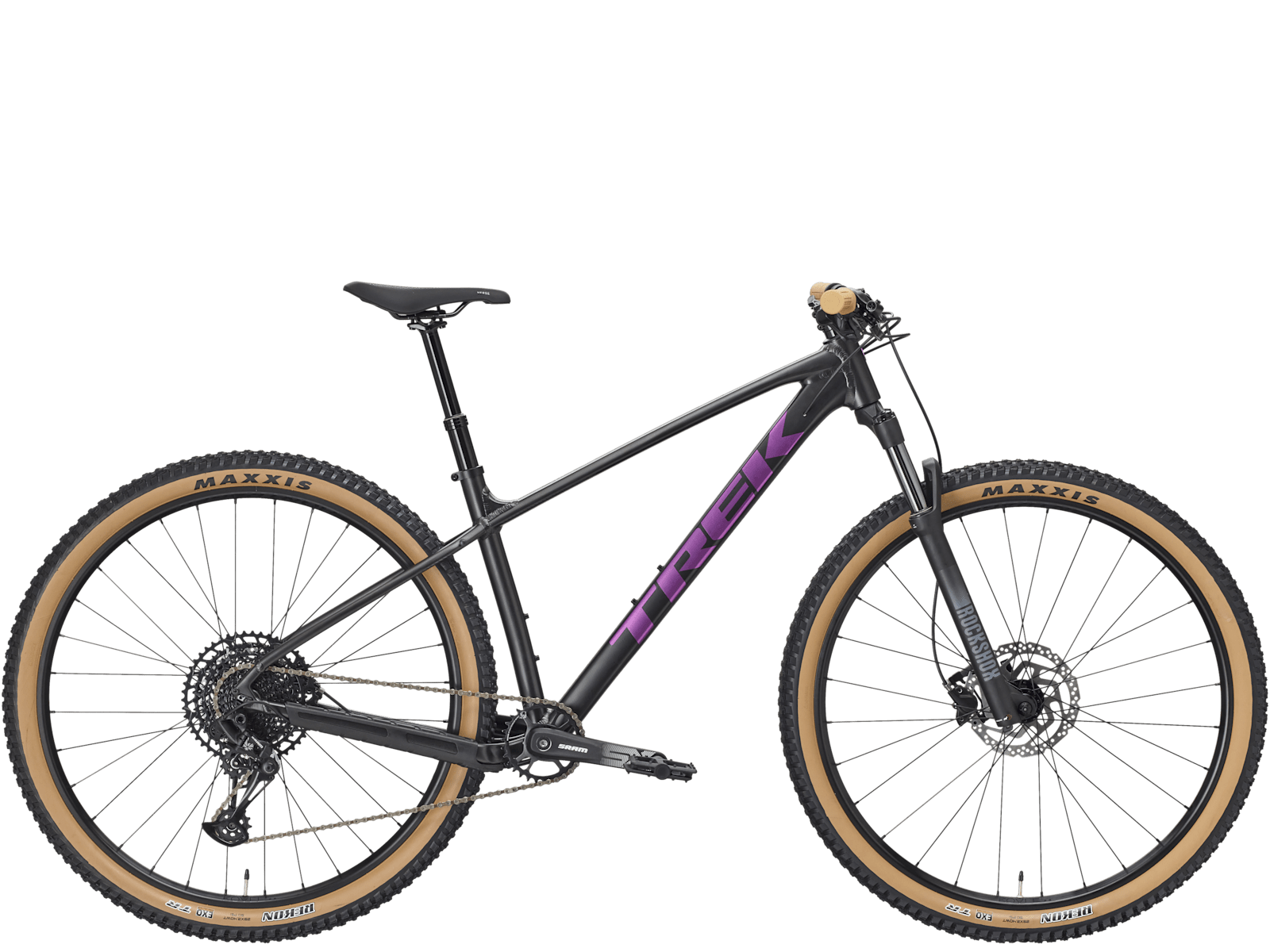

Trek Marlin 7 Gen 3 (2027)

$1,499.99

The Marlin 7 is the top of the Marlin range and the point where the parts stop being compromises. A RockShox fork rather than a budget coil unit, and SRAM NX Eagle at 12-speed with the range to get up anything.

If you are choosing between the 5, 6 and 7, the honest answer is that the fork is what you are paying for. It is the part you feel on every descent and the part that is most expensive to upgrade later.

Who it suits: riders who will ride real trails regularly, and anyone who would rather buy once.

Frameset

Frame (XS): Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Frame (S, M, ML, L, XL): Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Fork (XS, S): RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
Fork (M, ML, L, XL): RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel

Wheels

Hub front: Formula DC-20 LW, alloy, 6-bolt, 100x5 mm
Skewer front: 116x5 mm QR
Hub rear: Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm
Skewer rear: 173x5 mm QR
Rim (XS, S): Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve
Rim (M, ML, L, XL): Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve
Tyre (XS, S): Maxxis Rekon, tubeless ready, EXO casing, folding bead, 60 tpi, 27.5x2.40"
Tyre (M, ML, L, XL): Maxxis Rekon, tubeless ready, EXO casing, folding bead, 60 tpi, 29x2.40"
Rim strip: Bontrager TLR
Max tyre size: Frame: 29x2.40" (XS and S: 27.5x2.40"), Fork: see manufacturer

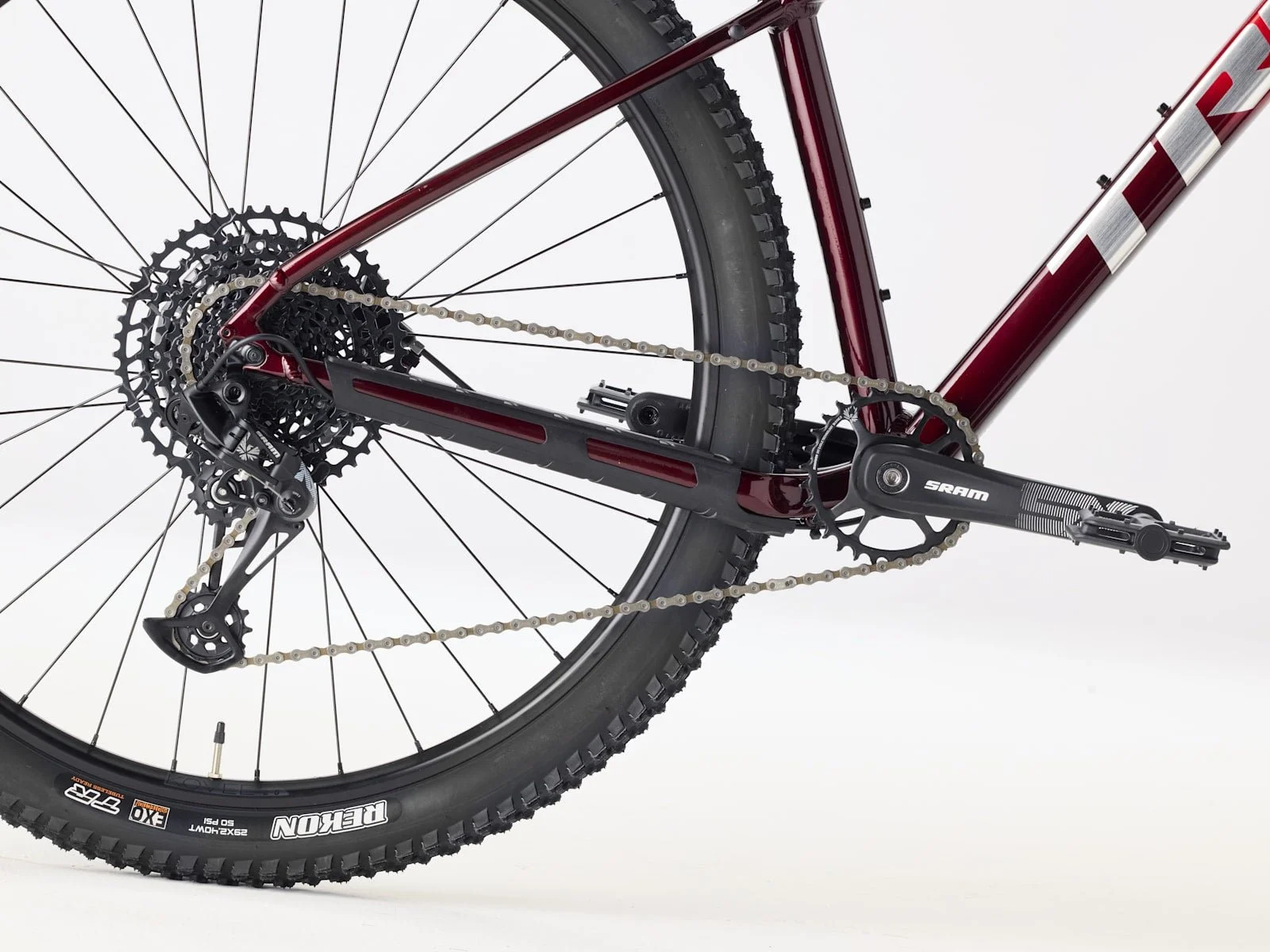

Drivetrain

Shifter: SRAM SX Eagle, 12-speed
Rear derailleur: SRAM NX Eagle, 12-speed
Crank (XS, S, M): SRAM SX Eagle, 30T steel ring, 49 mm chainline, 170 mm length
Crank (ML, L, XL): SRAM SX Eagle, 30T steel ring, 49 mm chainline, 175 mm length
Bottom bracket: Truvativ Powerspline, 73 mm, threaded cartridge, 118 mm spindle
Cassette: SRAM PG-1210 Eagle, 11-50, 12-speed
Chain: SRAM SX Eagle, 12-speed
Pedal: VP-536 nylon platform
Max chainring size: 1x: see FAQ, 2x: 36T, 3x: 42T

Components

Saddle: Bontrager Verse Short, stainless steel rails
Seatpost (XS, S): TranzX JD-YSI34 dropper, 100 mm travel, internal routing, 31.6 mm, 350 mm length
Seatpost (M): TranzX JD-YSI34 dropper, 125 mm travel, internal routing, 31.6 mm, 405 mm length
Seatpost (ML, L): TranzX JD-YSI34 dropper, 150 mm travel, internal routing, 31.6 mm, 456 mm length
Seatpost (XL): TranzX JD-YSI34 dropper, 170 mm travel, internal routing, 31.6 mm, 500 mm length
Handlebar (XS): Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
Handlebar (S): Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Handlebar (M, ML, L, XL): Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips: Trek Line Comp, nylon lock-on
Stem (XS, S): Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
Stem (M, ML, L): Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Stem (XL): Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
Headset: Semi-integrated, 1-1/8"
Brake rotor: Shimano RT26, 6-bolt, 160 mm (M, ML, L, XL also 180 mm)
Brake set: Shimano MT200 hydraulic disc
Max brake rotor size: Frame: 180 mm, Fork: see fork manufacturer

Weight

Weight: M - 14.15 kg / 31.2 lb
Weight limit: Maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb)

Spec applies to all sizes unless listed separately.
